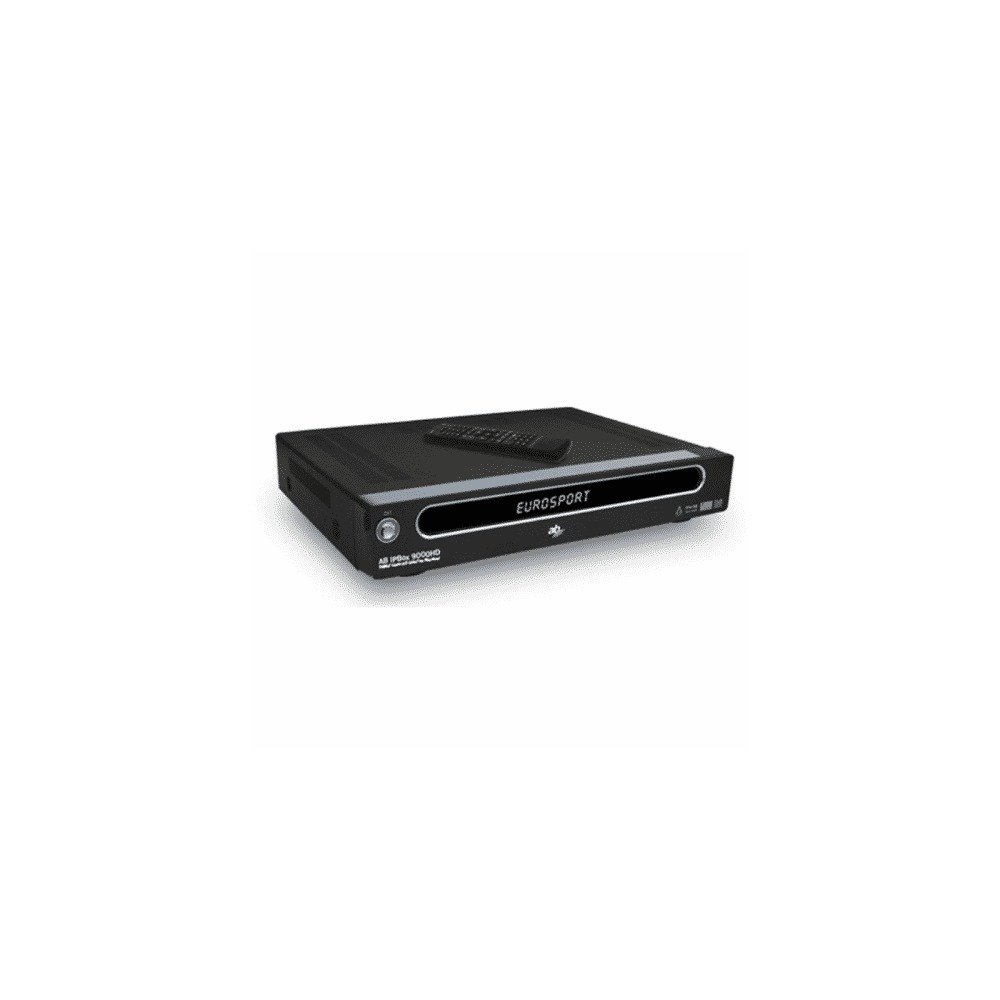

DGStation AB IPBox 9000HD Black (CubeRevo HD IPBox 9000HD)
3 835,00 kr inkl. moms
En ny revolutionerande digitalmottagare baserad på Linux. Nya CubeRevo HD (även kallad IPBox 9000HD) stödjer HD-upplösning på upp till 1080i med HDMI-utgången på baksidan. Andra unika funktioner för dagen är att den är den enda mottagare med HD som har plats för dubbla utbytbara tuners. Plats för inbyggd SATA-hårddisk finns men även möjlighet att koppla en extern via USB eller e-SATA.
Alltid Fri Frakt!
- 100% Nöjd Kundgaranti
- Enkla Returer
- Säkra Betalningar
DGStation AB IPBox 9000HD Black (CubeRevo HD IPBox 9000HD)
Vikt | 1 kg |
---|---|
Färg | Svart |
Specifikationer
- Features AB IPBox 9000HD Black / HDTV 2CI HDMI with HDCP DVB-S compliant
- DVB-S compliant DVB-S2, DVB-T, DVB-C supported
- Smart tuner supported(Plug & Play)
- MPEG-2 MP@HL Video Decoder
- MPEG-4 AVC/H.264 HP@L4 Video Decoder
- DIVX® supported WMV(VC1),
- WMA/WMA-pro Decoder
- Dolby AC3 downmix decoder
- HDMI with HDCP supported
- Multi-format Audio Decoder
- High Definition and Standard Definition
- DVB Common Interface (2 slots) supported
- Format resolution: 1080i, 720p, 576p
- USB 2.0(Host)
- supported USB 1.0(Client) supported
- Network Interface Supported( high speed Ethernet)
- VFD Display : Capability for display of various information
- SCPC and MCPC receivable from C/Ku-band satellites
- Channel list editing
- Favorite channel list editing
- True-color On-Screen Display (OSD)
- Full Picture In Graphic (PIG) function
- Electronic Program Guide (EPG) for on screen channel information
- Subtitle & Teletext supported
- Parental lock facility by channel and program event
- Added hardware parts for future use.
- S-ATA cable and 3.5 “ HDD cradle(bracket) HDD SATA 1 (1.5 Gbps)
- 2 x mini PCI socket for several kinds of tuner
- 2 x smartcard reader
- IPTV function to be added
- CPUType266MHz ST40-202 32bit RISC CPUData/Instruction Cache32KB/16KBSatellite QPSK Tuner(DVB-S)Input ConnectorIEC 169-24 Female(F-type)Input Signal Level-65 to -25dBmFrequency Range950MHz to 2150MHzLNB ControlVertical13V(400mA Max)Horizontal18V(400mA Max)WaveformQPSK(C/KU band compatible)22KHz ToneFrequency22±4KHzAmplitude0.6±0.2VSymbol RateQPSK( up to 45MS/s)DiSEqC ControlVersion 1.0/1.1/1.2/USALS CompatibleSatellite 8PSK Tuner(DVB-S2)Input ConnectorIEC 169-24 Female(F-type)Input Signal Level-65 to -25dBmFrequency Range950MHz to 2150MHzLNB ControlVertical13V(400mA Max)Horizontal18V(400mA Max)WaveformQPSK, 8PSK(C/KU band compatible)22KHz ToneFrequency22±4KHzAmplitude0.6±0.2VSymbol RateQPSK( up to 45MS/s), DVB-S2 :QPSK(up to 36MS/S), 8PSK(up to 30MS/s)DiSEqC ControlVersion 1.0/1.1/1.2/USALS CompatibleTerrestrial OFDM TunerInput ConnectorIEC169-2 femaleLoop through ConnectorIEC169-2 maleFrequency Range50MHz to 870MHzLoop through Out Impedance75 ohms nominalBand Width7/8 MHzCarrier Mode2k & 8k hierachical/non-hierachical modeConstellationAuto(QPSK, 16/64 QAM)Mode RateAuto(1/2, 2/3, 3/4, 5/6 and 7/8)Guard IntervalAuto(1/4, 1/8, 1/16 and 1/32)Cable QAM TunerInput ConnectorIEC169-2 femaleLoop through ConnectorIEC169-2 maleFrequency Range47MHz to 862MHzLoop through Out Impedance75 ohms nominalIF Bandwidth8MHzQAM mode16, 32, 64,128,256QAMSymbol rate0.87Mbaud~7Mbaud Max.MPEG Transport Stream & A/V DecodingInput StreamISO/IEC 13818-2 Specification and VC1 Microsoft video format main/advanced profiles@HL(WMV-9), H.264Profile & LevelMPEG-2 MP@ML, MP@HL, MPEG4 AP@HL/H.264 level 4.1, VC1(WMV9)Input TS Data Rate138Mbit/S max.Aspect Ratio4:3, 16:9 with pan/scan vectorVideo Resolution720 x 576(PAL), 720 x 480(NTSC), 1080i, 720P, 480i, 480PAudio DecodingMPEG-1 Audio Layer 1,2, MusicamAudio ModeStereo, Dual Channel, Joint Stereo, MonoSample Rate32, 44.1, and 48KHzMemoryFlash Memory32MBDDR SDRAM192MB (64MB 128MB)Storage & Rear connectorHDDSerial ATA 80/120/160/200GB and over (User Selectable)Digital interface for HDTVHDMI with HDCPSCART I/FVCR & TV(2 Ports)CVBS & Audio R/L OutRCA(3 Ports)S-videoDinComponent Out(YPbPr)RCA(3 Ports)Digital AudioS/PDIF via OpticalData In/OutUSB Host InterfaceUSB A-Type Female (USB 2.0)USB Device InterfaceUSB B-Type Female (USB 1.0)RS232C9 Pin D-SubNetworkEthernetRJ-45( 100BT )Conditional AccessCommon Interface2 PCMCIA-Cards SlotsSmartcard Interface2 SlotsFront DisplayVFDVacuum Fluorescent Display as Alpha numeric stylePower SupplyInput VoltageAC110-245V, 50/60HzTypeLinear PWMPower Consumption50WProtection– Separate Internal Fuse and ChassisPhysical SpecificationSize (W x H x D)375mm x 60mm x 280 mmWeight3.5Kg
Environment Operating Temperature5 ~ 55CStorage Temperature-40C ~ 65C
Frakt information
Leveranstid 1-3 dagar
