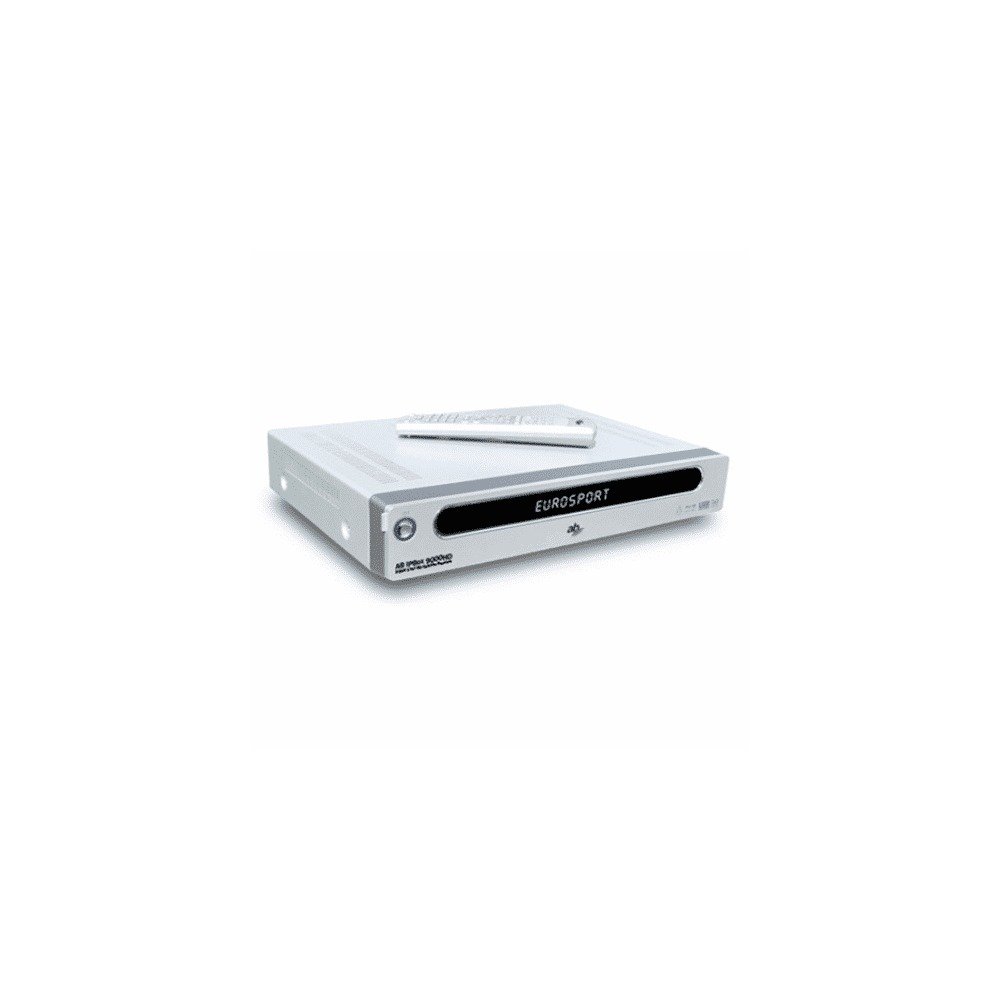

DGStation AB IPBox 9000HD Silver (CubeRevo HD IPBox 9000HD)

Specifikationer

Features AB IPBox 9000HD Silver / HDTV 2CI HDMI with HDCP DVB-S compliant

• DVB-S compliant DVB-S2, DVB-T, DVB-C supported
• Smart tuner supported(Plug & Play)
• MPEG-2 MP@HL Video Decoder
• MPEG-4 AVC/H.264 HP@L4 Video Decoder
• DIVX® supported WMV(VC1),
• WMA/WMA-pro Decoder
• Dolby AC3 downmix decoder
• HDMI with HDCP supported
• Multi-format Audio Decoder
• High Definition and Standard Definition
• DVB Common Interface (2 slots) supported
• Format resolution: 1080i, 720p, 576p
• USB 2.0(Host)
• supported USB 1.0(Client) supported Network Interface Supported( high speed Ethernet)
• VFD Display : Capability for display of various information
• SCPC and MCPC receivable from C/Ku-band satellites
• Channel list editing
• Favorite channel list editing
• True-color On-Screen Display (OSD)
• Full Picture In Graphic (PIG) function
• Electronic Program Guide (EPG) for on screen channel information
• Subtitle & Teletext supported
• Parental lock facility by channel and program event
• Added hardware parts for future use.
• S-ATA cable and 3.5 “ HDD cradle(bracket) HDD SATA 1 (1.5 Gbps)
• 2 x mini PCI socket for several kinds of tuner
• 2 x smartcard reader
• IPTV function to be added

• CPU	Type	266MHz ST40-202 32bit RISC CPU
  	Data/Instruction Cache	32KB/16KB
  Satellite QPSK Tuner(DVB-S)	Input Connector	IEC 169-24 Female(F-type)
  	Input Signal Level	-65 to -25dBm
  	Frequency Range	950MHz to 2150MHz
  	LNB Control	Vertical	13V(400mA Max)
  		Horizontal	18V(400mA Max)
  	Waveform	QPSK(C/KU band compatible)
  	22KHz Tone	Frequency	22±4KHz
  		Amplitude	0.6±0.2V
  	Symbol Rate	QPSK( up to 45MS/s)
  	DiSEqC Control	Version 1.0/1.1/1.2/USALS Compatible
  Satellite 8PSK Tuner(DVB-S2)	Input Connector	IEC 169-24 Female(F-type)
  	Input Signal Level	-65 to -25dBm
  	Frequency Range	950MHz to 2150MHz
  	LNB Control	Vertical	13V(400mA Max)
  		Horizontal	18V(400mA Max)
  	Waveform	QPSK, 8PSK(C/KU band compatible)
  	22KHz Tone	Frequency	22±4KHz
  		Amplitude	0.6±0.2V
  	Symbol Rate	QPSK( up to 45MS/s), DVB-S2 :QPSK(up to 36MS/S), 8PSK(up to 30MS/s)
  	DiSEqC Control	Version 1.0/1.1/1.2/USALS Compatible
  Terrestrial OFDM Tuner	Input Connector	IEC169-2 female
  	Loop through Connector	IEC169-2 male
  	Frequency Range	50MHz to 870MHz
  	Loop through Out Impedance	75 ohms nominal
  	Band Width	7/8 MHz
  	Carrier Mode	2k & 8k hierachical/non-hierachical mode
  	Constellation	Auto(QPSK, 16/64 QAM)
  	Mode Rate	Auto(1/2, 2/3, 3/4, 5/6 and 7/8)
  	Guard Interval	Auto(1/4, 1/8, 1/16 and 1/32)
  Cable QAM Tuner	Input Connector	IEC169-2 female
  	Loop through Connector	IEC169-2 male
  	Frequency Range	47MHz to 862MHz
  	Loop through Out Impedance	75 ohms nominal
  	IF Bandwidth	8MHz
  	QAM mode	16, 32, 64,128,256QAM
  	Symbol rate	0.87Mbaud~7Mbaud Max.
  MPEG Transport Stream & A/V Decoding	Input Stream	ISO/IEC 13818-2 Specification and VC1 Microsoft video format main/advanced profiles@HL(WMV-9), H.264
  	Profile & Level	MPEG-2 MP@ML, MP@HL, MPEG4 AP@HL/H.264 level 4.1, VC1(WMV9)
  	Input TS Data Rate	138Mbit/S max.
  	Aspect Ratio	4:3, 16:9 with pan/scan vector
  	Video Resolution	720 x 576(PAL), 720 x 480(NTSC), 1080i, 720P, 480i, 480P
  	Audio Decoding	MPEG-1 Audio Layer 1,2, Musicam
  	Audio Mode	Stereo, Dual Channel, Joint Stereo, Mono
  	Sample Rate	32, 44.1, and 48KHz
  Memory	Flash Memory	32MB
  	DDR SDRAM	192MB (64MB 128MB)
  Storage & Rear connector	HDD	Serial ATA 80/120/160/200GB and over (User Selectable)
  	Digital interface for HDTV	HDMI with HDCP
  	SCART I/F	VCR & TV(2 Ports)
  	CVBS & Audio R/L Out	RCA(3 Ports)
  	S-video	Din
  	Component Out(YPbPr)	RCA(3 Ports)
  	Digital Audio	S/PDIF via Optical
  Data In/Out	USB Host Interface	USB A-Type Female (USB 2.0)
  	USB Device Interface	USB B-Type Female (USB 1.0)
  	RS232C	9 Pin D-Sub
  Network	Ethernet	RJ-45( 100BT )
  Conditional Access	Common Interface	2 PCMCIA-Cards Slots
  	Smartcard Interface	2 Slots
  Front Display	VFD	Vacuum Fluorescent Display as Alpha numeric style
  Power Supply	Input Voltage	AC110-245V, 50/60Hz
  	Type	Linear PWM
  	Power Consumption	50W
  	Protection	– Separate Internal Fuse and Chassis
  Physical Specification	Size (W x H x D)	375mm x 60mm x 280 mm
  	Weight	3.5Kg
  Environment	Operating Temperature	5 ~ 55C
  	Storage Temperature	-40C ~ 65C
