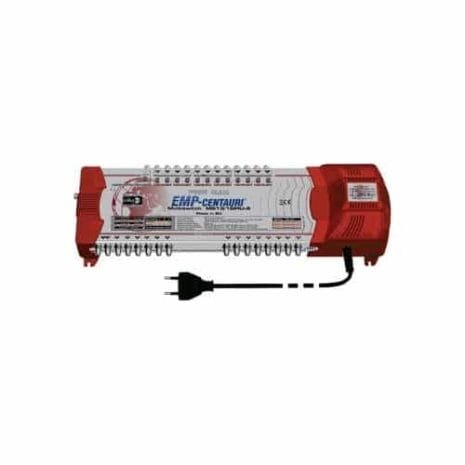

EMP MS13/16PIU-6
4 475,00 kr inkl. moms
3-satellites (12 polarities) standalone multiswitches with an integrated power supply are designed for the distribution of terrestrial and satellite signals from 3-satellite position for up to 26 subscribers. Multiswitches are compatible with all satellite receivers, which support DiSEqC control system. They are suitable for both analog and digital reception.
The multiswitches and integrated power supplies are designed for maximum efficiency in full operation, eliminating need for stand-by mode functionality
Alltid Fri Frakt!
- 100% Nöjd Kundgaranti
- Enkla Returer
- Säkra Betalningar

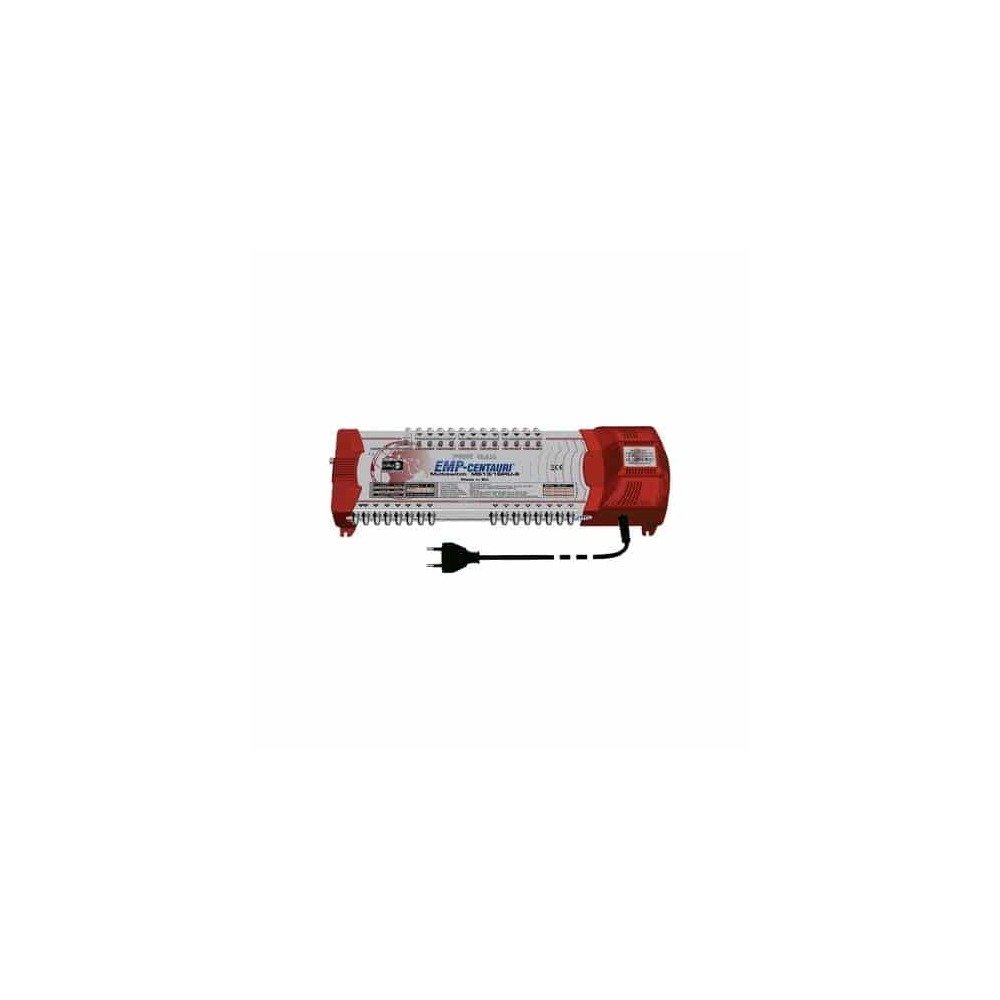

EMP MS13/16PIU-6
3-satellites (12 polarities) standalone multiswitches with an integrated power supply are designed for the distribution of terrestrial and satellite signals from 3-satellite position for up to 26 subscribers. Multiswitches are compatible with all satellite receivers, which support DiSEqC control system. They are suitable for both analog and digital reception.
The multiswitches and integrated power supplies are designed for maximum efficiency in full operation, eliminating need for stand-by mode functionality
The multiswitches and integrated power supplies are designed for maximum efficiency in full operation, eliminating need for stand-by mode functionality
Advantages of Profi Class multiswitches
- input attenuators at all inputs
- configurable support for Quad LNBs
- selectable active / passive processing of terrestrial band
- 12V DC supply for terrestrial preamplifier
- extended temperature range
| Vikt | 2 kg |
|---|---|
| Färg | röd |
Specifikationer
| Specifications of MS13/16PIU-6 | ||
| Frequency range | LNB inputs | 950-2300 MHz |
| Terr. input | 5-862 MHz (passive) 40-862 MHz (active) | |
| Outputs | 5-2300 MHz (passive)40-2300 MHz (active) | |
| Control | DiSEqC 1.0 (2.0) commands | |
| Insertion loss | Sat. | 0 dB avg |
| Terr. passive | 21 dB avg | |
| Terr. active | 7 dB avg | |
| Sat. inputs isolation | Between V/H polarisations | 20 dB min |
| Between low/high bands | 20 dB min | |
| Between sat. systems | 25 dB min | |
| Maximum input level* | Sat. | 90 dBµV avg |
| Terr. | 110 dBµV avg (passive)100 dBµV avg (active) | |
| Maximum output level* | Sat. | 90 dBµV avg |
| Terr. | 89 dBµV avg (passive)93 dBµV avg (active) | |
| Power consumption | From each receiver | 75 mA (18 V) |
| From internal power supply | 4.5 W (passive)6.5 W (active) + LNB | |
| Dimensions (w,d,h) | 47.0 x 15.2 x 8.7 cm(power cord length 130 cm) | |
| Temperature range | -30 ~ +70 °C | |
