EMP MS3/4EIP-7

559,00 kr inkl. moms

3in/4out distribution system with passive terrestrial input and with 4 satellite inputs, with an integrated power supply. Switching between inputs is done by 13/18 V from a receiver. This type is not compatible with Quad LNBs.

Alltid Fri Frakt!

  • Check Mark 100% Nöjd Kundgaranti
  • Check Mark Enkla Returer
  • Check Mark Säkra Betalningar
Garanterat Säker Checkout
  • Visa Card
  • MasterCard
  • PayPal
Artikelnr: 14-MS3/4EIP-7 Kategori: Etikett:

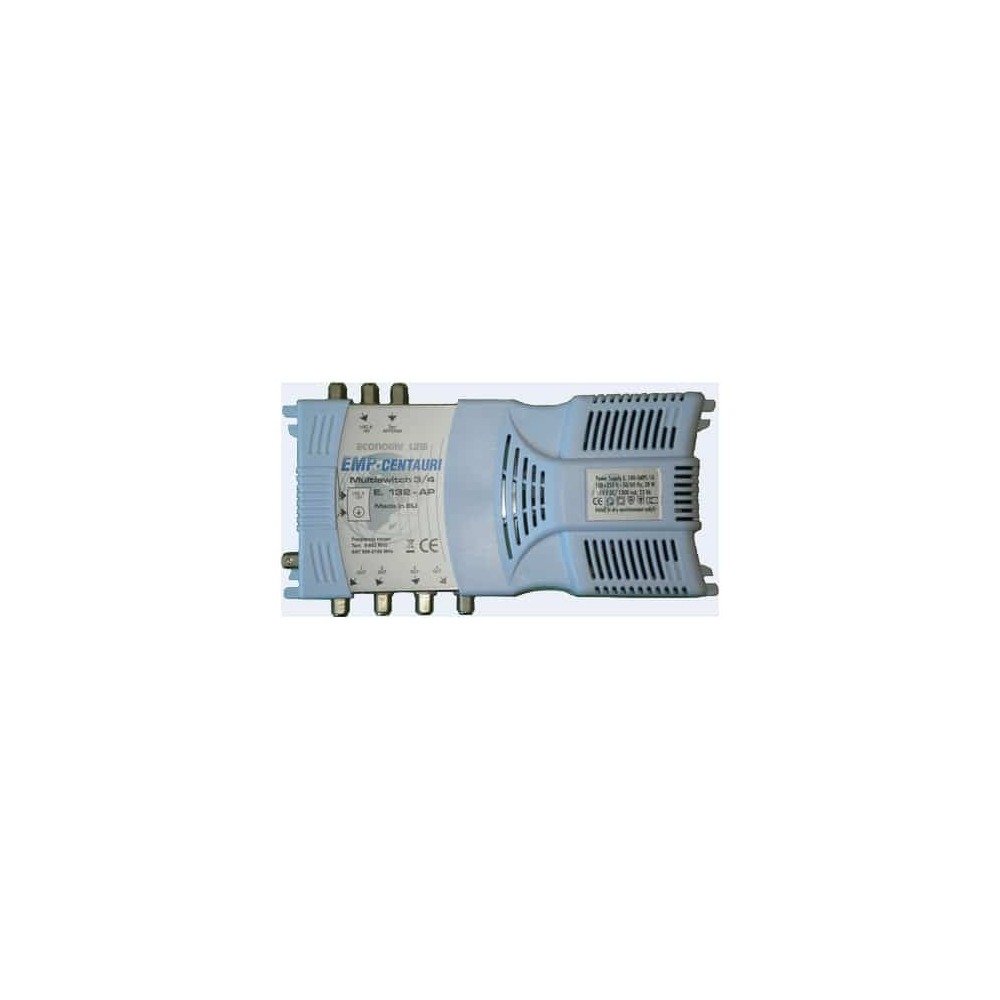

EMP MS3/4EIP-7

3in/4out distribution system with passive terrestrial input and with 4 satellite inputs, with an integrated power supply. Switching between inputs is done by 13/18 V from a receiver. This type is not compatible with Quad LNBs.

Vikt2 kg
Färg

Light-Blue

Specifikationer

3in/4out distribution system with passive terrestrial input and with 4 satellite inputs, with an integrated power supply. Switching between inputs is done by 13/18 V from a receiver. This type is not compatible with Quad LNBs.

Specifications of E.132-AP (MS3/4EIP-7)
Frequency RangeLNB-Inputs950-2150 MHz
Terr. Input5-862 MHz
Outputs5-2150 MHz
Control13/18 V
Insertion Loss950-2150 MHz10 dB avg.
5-862 MHz12 dB avg.
SAT Inputs IsolationBetween V/H Polarisations20 dB min.
Maximum Input Level*Sat.100 dBµV
Terr.110 dBµV
Power ConsumptionWithout connected LNBs1 W
Incl. connected LNBs28 VA max.
LNB Power Supply800 mA max.
Dimensions (w,d,h [cm])26.3 x 11.5 x 5.4
Temperature range-25 °C – +60 °C

*Terr.: EN 50083-3/60dB IMA3 [dBµV]; SAT: EN 50083-3/35dB IMA3 [dBµV]
