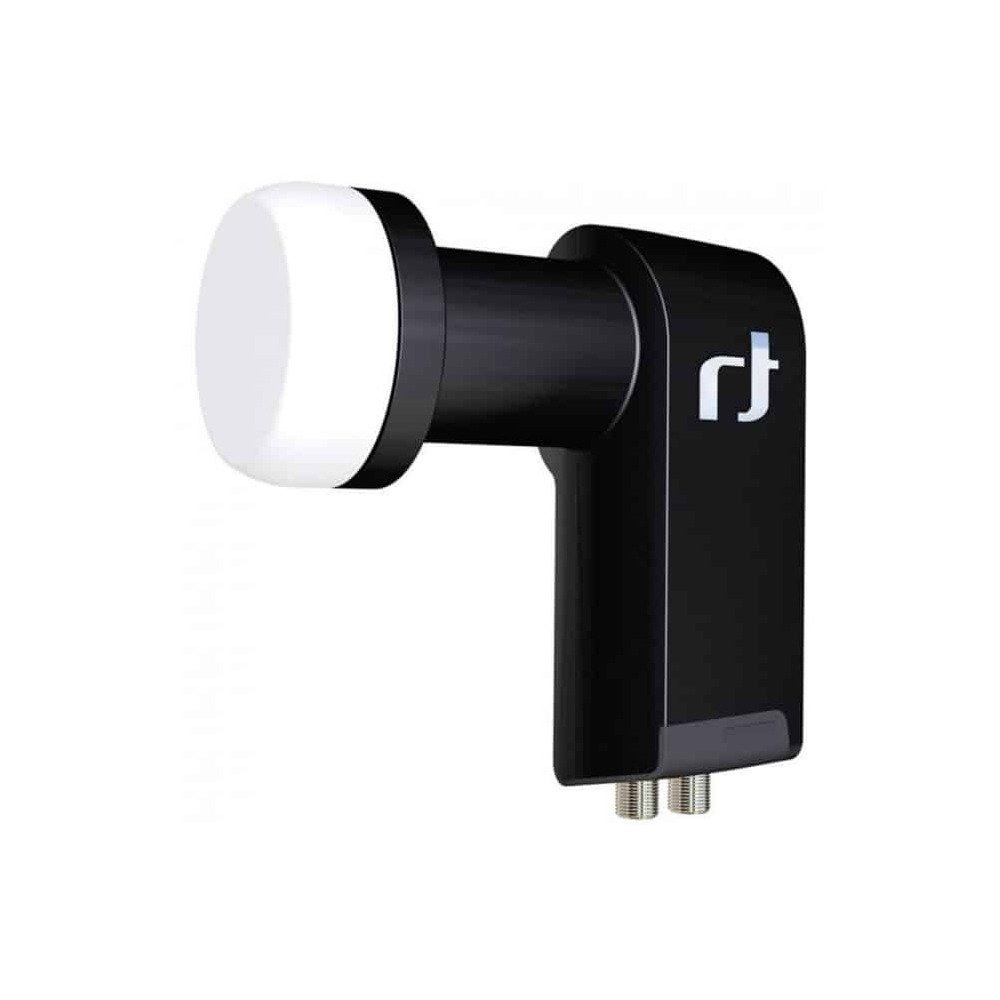

INVERTO Twin LNB Inverto Black Ultra

395,00 kr inkl. moms

  •  Ett mycket högkvalitativt twin lnb från världsledande Inverto.•  Superior Phase Noise performance, DVB-S2 (HDTV) compliant•  Excellent  Cross Polarization Isolation

    •  Very Low Spurious Levels

    •  Superior Noise Figure

    •  Higher Conversion Gain

    •  Ultimate Reliability

Alltid Fri Frakt!

  • Check Mark 100% Nöjd Kundgaranti
  • Check Mark Enkla Returer
  • Check Mark Säkra Betalningar
Garanterat Säker Checkout
  • Visa Card
  • MasterCard
  • PayPal
Artikelnr: 14-1321 Kategori: Etikett:

INVERTO Twin LNB Inverto Black Ultra

  •  Ett mycket högkvalitativt twin lnb från världsledande Inverto.•  Superior Phase Noise performance, DVB-S2 (HDTV) compliant•  Excellent  Cross Polarization Isolation

    •  Very Low Spurious Levels

    •  Superior Noise Figure

    •  Higher Conversion Gain

    •  Ultimate Reliability

Vikt1 kg
Färg

Svart

Specifikationer

Low Band Input Frequency Range10.7 ~ 11.7 GHz
Low Band Output Frequency Range950 ~ 1950 MHz
Low Band LO Frequency9.75 GHz
High Band Input Frequency Range11.7 ~ 12.75 GHz
High Band Output Frequency Range1100 ~ 2150 MHz
High Band LO Frequency10.6 GHz
Noise Figure0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy+/- 1.0 MHz Max.
LO Temperature Drift+/- 3.0 MHz Max.
Phase Noise (@ 10 kHz)– 90 dBc / Hz Max.
Conversion Gain60 dB Min.
Gain Ripple (Over 26MHz Bandwidth)+/- 0.75 dB
Gain Variation (Over Full Band)+/- 4 dB Max.
Image Rejection40 dB Min.
1 dB Compression Point (@ Output)0.0 dBm Min.
Cross Polarization Isolation22 dB Min.
Control Signal Ca (Vertical Polarization)11.0 ~ 14.0 V
Control Signal Cb (Horizontal Polarization)16.0 ~ 20.0 V
Control Signal Cc (Band Switching)22 +/- 4 kHz
Output VSWR2.0 : 1
In-Band Spurious– 60 dBm Max.
Current Consumption180 mA Max. @ 11 ~ 20 V
Operating Temperature– 30 °C  ~  + 60 °C
Output Impedance75 Ω
Output ConnectorF-Type (Female)
Weight181 g
