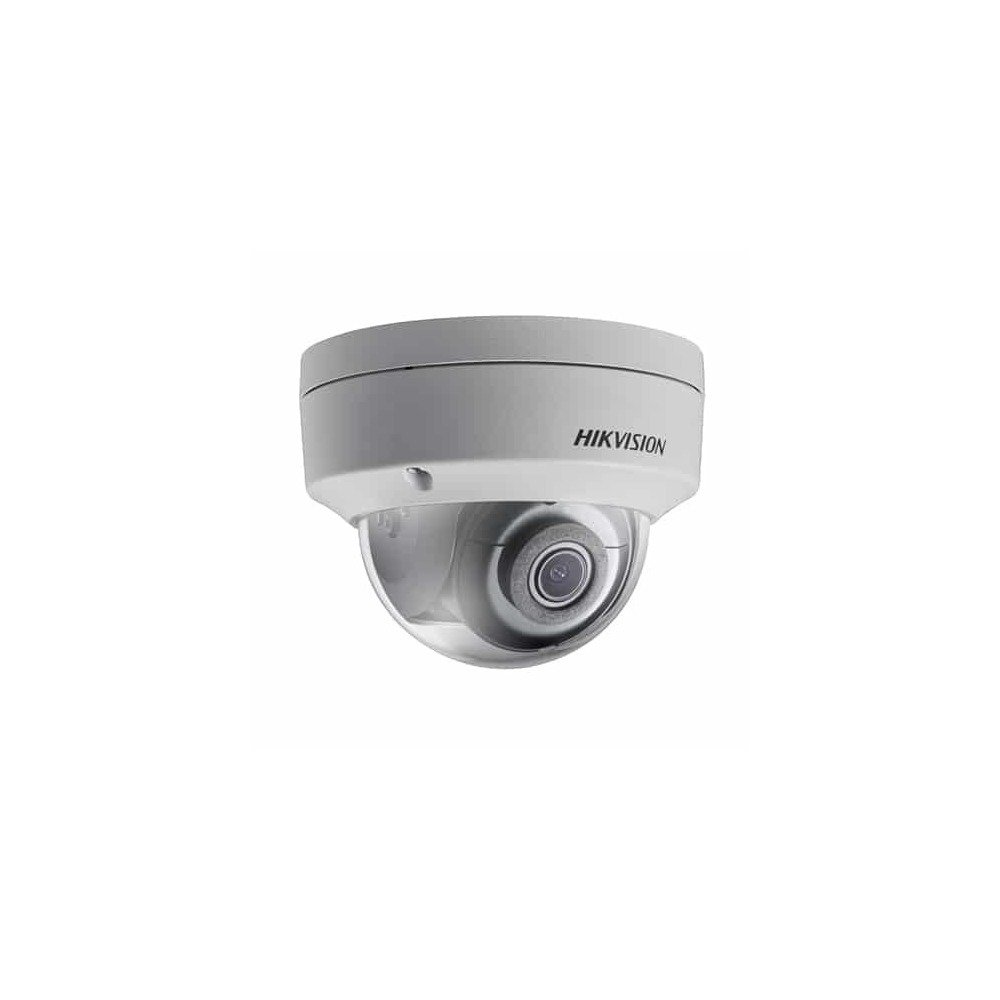

HIKVISION DS-2CD2143G0-I 2.8mm 4MP Dome

Specifikationer

• SpecificationCamera:
  • Image Sensor: 1/3″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • Day & Night: IR Cut Filter
  • Wide Dynamic Range: 120dB
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • DNR: 3D DNR

  Lens:

  • Lens: 2.8/4/6/8 mm
  • Auto-Iris: No
  • Aperture: F1.6
  • Focus: Fixed
  • FOV: 2.8 mm, horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°,4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°,6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°,8 mm, horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
  • Lens Mount: M12

  Illuminator:

  • IR Range: Up to 30 m
  • Wavelength: 850nm

  Video:

  • Max. Resolution: 2688 × 1520
  • Main Stream: 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression: Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • H.264 Type: Main Profile/High Profile
  • H.265 Type: Main Profile
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • SVC: H.264 and H.265 encoding

  Audio:

  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio: 1 input (line in/mic in), 1 output (line out), terminal block, mono sound

  Smart Feature-Set:

  • Smart Event: Line crossing detection, intrusion detection, face detection
  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

  Image:

  • Image Enhancement: BLC/3D DNR/HLC
  • Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Target Cropping: No
  • Day/Night Switch: Day/Night/Auto/Schedule

  Network:

  • Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Simultaneous Live View: Up to 6 channels
  • User/Host: Up to 32 users,3 levels: Administrator, Operator and User
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Firmware Version: 5.6.3

  Interface:

  • Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Video Output: No
  • On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

  General:

  • Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Reset: Yes
  • Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Power Consumption And Current: 12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
  • Material: Camera body: metal, bubble: plastic
  • Dimensions: Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″),Package: 134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″)
  • Weight: Camera: Approx. 610 g (1.3 lb.),With Package: Approx. 820 g (1.8 lb.)
  • Interface Protection: IP67

  Approval:

  • Impact Protection: IK10

  Compression Standard:

  • H.264+ Main stream supports
  • H.265+ Main stream supports
