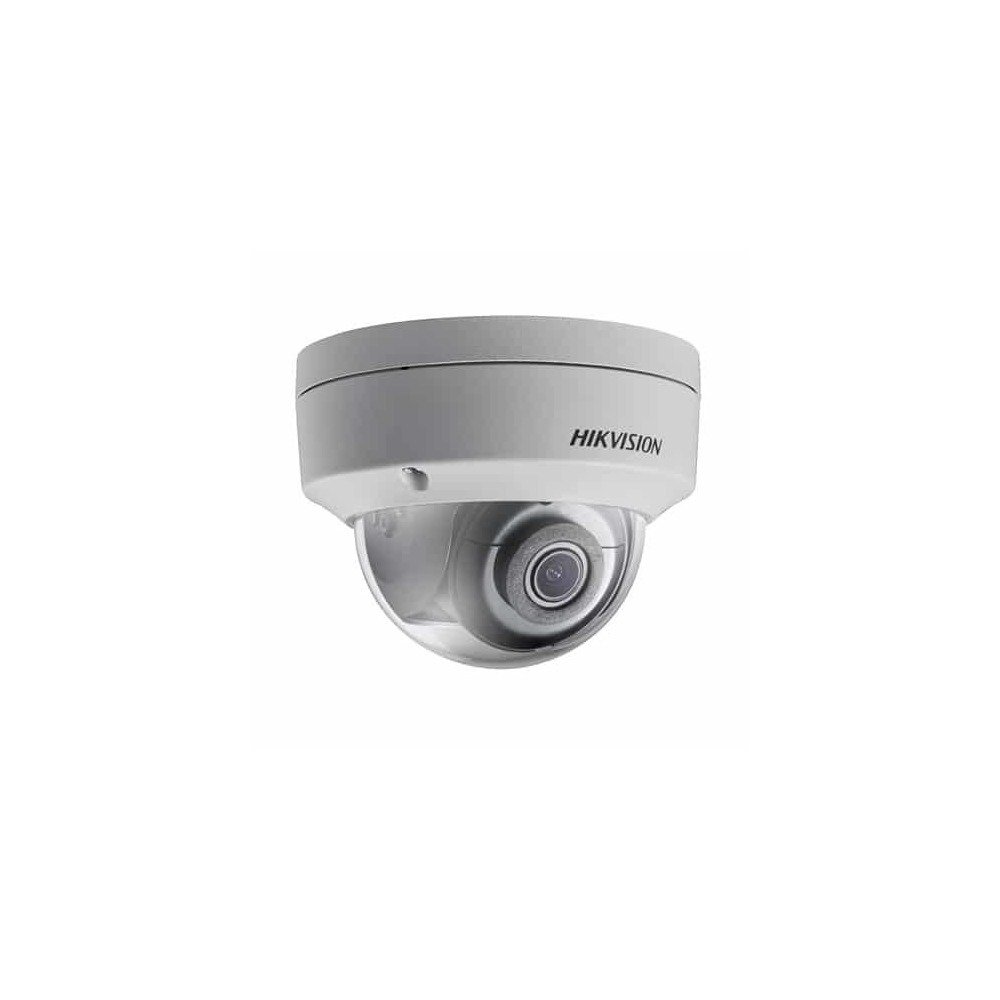

HIKVISION DS-2CD2145FWD-IS 4mm 4MP Dome

Specifikationer

• SpecificationCamera:
  • Image Sensor: 1/2.5″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.008 lux @(F1.2, AGC ON), 0 lux with IR;Color: 0.014 lux @(F1.6, AGC ON), 0 lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • Day & Night: IR Cut Filter
  • Wide Dynamic Range: 120dB
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • DNR: 3D DNR

  Lens:

  • Lens: 4 mm
  • Auto-Iris: No
  • Aperture: F1.6
  • Focus: Fixed
  • FOV: 2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°;4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°;6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°;8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°;12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
  • Lens Mount: M12

  Illuminator:

  • IR Range: Up to 30 m

  Video:

  • Max. Resolution: 2688 × 1520
  • Main Stream: 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream: 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream: 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288);60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression: Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
  • H.264 Type: Main Profile/High Profile
  • H.265 Type: Main Profile
  • Video Bit Rate: 32 Kbps to 16 Mbps

  Audio:

  • Audio Compression: G722.1/G.711/G726/MP2L2/PCM/MP3
  • Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

  Smart Feature-Set:

  • Behavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Region Of Interest: Support 1 fixed region for main stream and sub-stream separately

  Image:

  • Image Enhancement: BLC/3D DNR/HLC
  • Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Day/Night Switch: Day/Night/Auto/Schedule

  Network:

  • Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Simultaneous Live View: Up to 6 channels
  • User/Host: Up to 32 users,3 levels: Administrator, Operator and User
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+

  Interface:

  • Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G

  General:

  • Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Reset: Yes
  • Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Power Consumption And Current: 12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
  • Material: Camera body: metal, bubble: plastic
  • Dimensions: Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″);Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
  • Weight: Camera: 500 g (1.1 lb.)
  • Interface Protection: IP67

  Approval:

  • Impact Protection: IK10

  Compression Standard:

  • H.264+ Main stream supports
  • H.265+ Main stream supports
