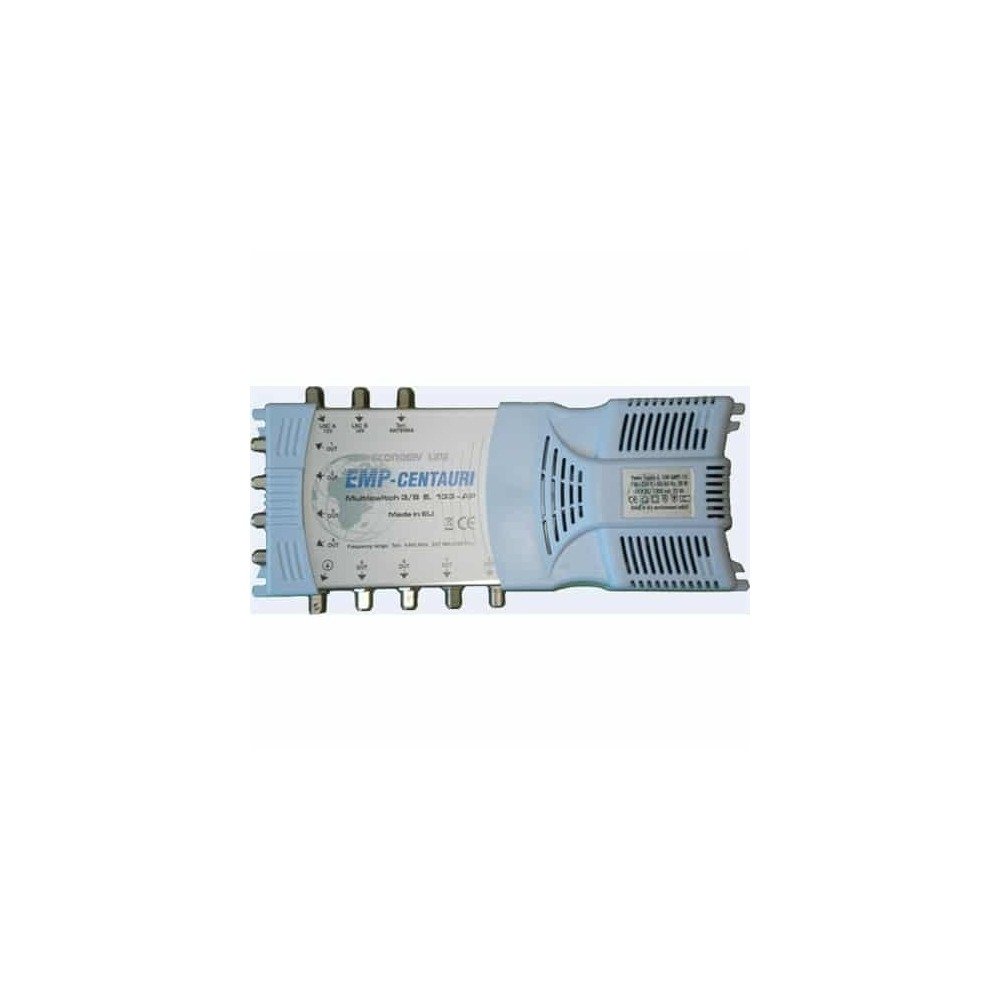

EMP MS3/8EIP-8
839,00 kr inkl. moms
3in/8out distribution system with passive terrestrial input and 4 satellite inputs, with an integrated power supply. Switching between inputs is done by 13/18 V from a receiver. The unit is compatible with Quad LNBs.
Alltid Fri Frakt!
- 100% Nöjd Kundgaranti
- Enkla Returer
- Säkra Betalningar
EMP MS3/8EIP-8
3in/8out distribution system with passive terrestrial input and 4 satellite inputs, with an integrated power supply. Switching between inputs is done by 13/18 V from a receiver. The unit is compatible with Quad LNBs.
| Vikt | 1 kg |
|---|---|
| Färg | Light-Blue |
Specifikationer
3in/8out distribution system with passive terrestrial input and 4 satellite inputs, with an integrated power supply. Switching between inputs is done by 13/18 V from a receiver. The unit is compatible with Quad LNBs.
| Specifications of E.133-AP (MS3/8EIP-8) | ||
| Frequency Range | LNB-Inputs | 950-2150 MHz |
| Terr. Input | 5-862 MHz | |
| Outputs | 5-2150 MHz | |
| Control | 13/18 V | |
| Insertion Loss | 950-2150 MHz | 6 dB avg. |
| 5-862 MHz | 15 dB avg. | |
| SAT Inputs Isolation | Between V/H Polarisations | 20 dB min. |
| Maximum Input Level* | Sat. | 100 dBµV |
| Terr. | 110 dBµV | |
| Power Consumption | Without connected LNBs | 1 W |
| Incl. connected LNBs | 28 VA max. | |
| LNB Power Supply | 800 mA max. | |
| Dimensions (w,d,h [cm]) | 26.3 x 11.5 x 5.4 | |
| Temperature range | -25 °C – +60 °C | |
*Terr.: EN 50083-3/60dB IMA3 [dBµV]; SAT: EN 50083-3/35dB IMA3 [dBµV]
