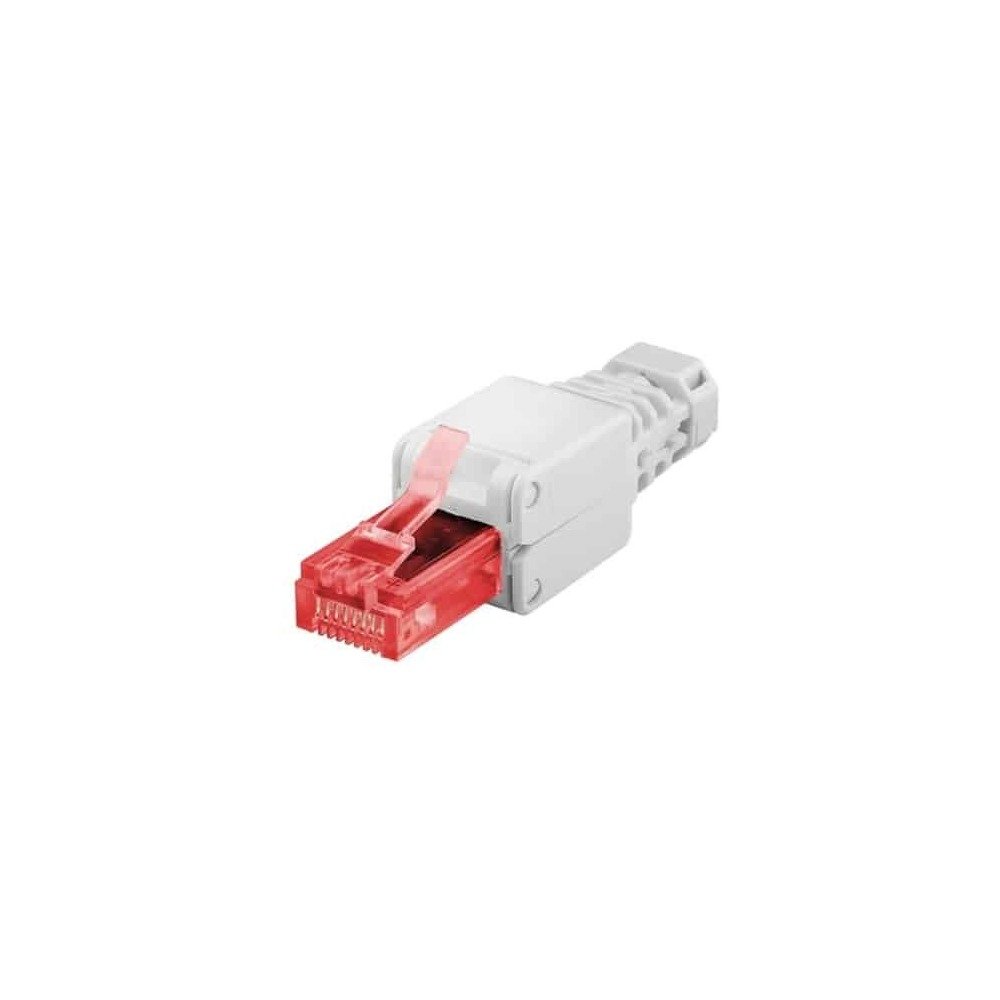

Goobay Tool-free RJ45 network connector

Goobay Tool-free RJ45 network connector

For 3 different cable OD: up to 5.2mm/ 6.4mm/ 7.5mm

• UTP unshielded with strain relief
• With cable reducer that can be used for three different cable diameters: up to 5.2 mm/6.4 mm/7.5 mm
• For stranded and solid inner conductor (AWG 22 to 26)
• • Easy and tool-free assembly
  • Simply press down on the connector housing
  • Supports transmission rates on the order of gigabits
  • Cable contacts marked in colour



  Technical specifications

  Connections

  • • Connection, type: RJ45 male (8P8C)
    • Connection 2, type: for IDC connectors (toolless)
    • Connection, contact material: gold-plated 3µ

  Cable

  • • Shielding class: UTP
    • Specification: CAT 6
    • Kink protection: yes

  Signal transmission

  • • max. bandwidth: 250 MHz

  General:

  • • Packaging type: Bulk
    • Consumption Unit: 1 pc. in polybag
    • Markings: CE
    • Length: 52 mm
    • Width: 15 mm
    • Height: 15 mm
