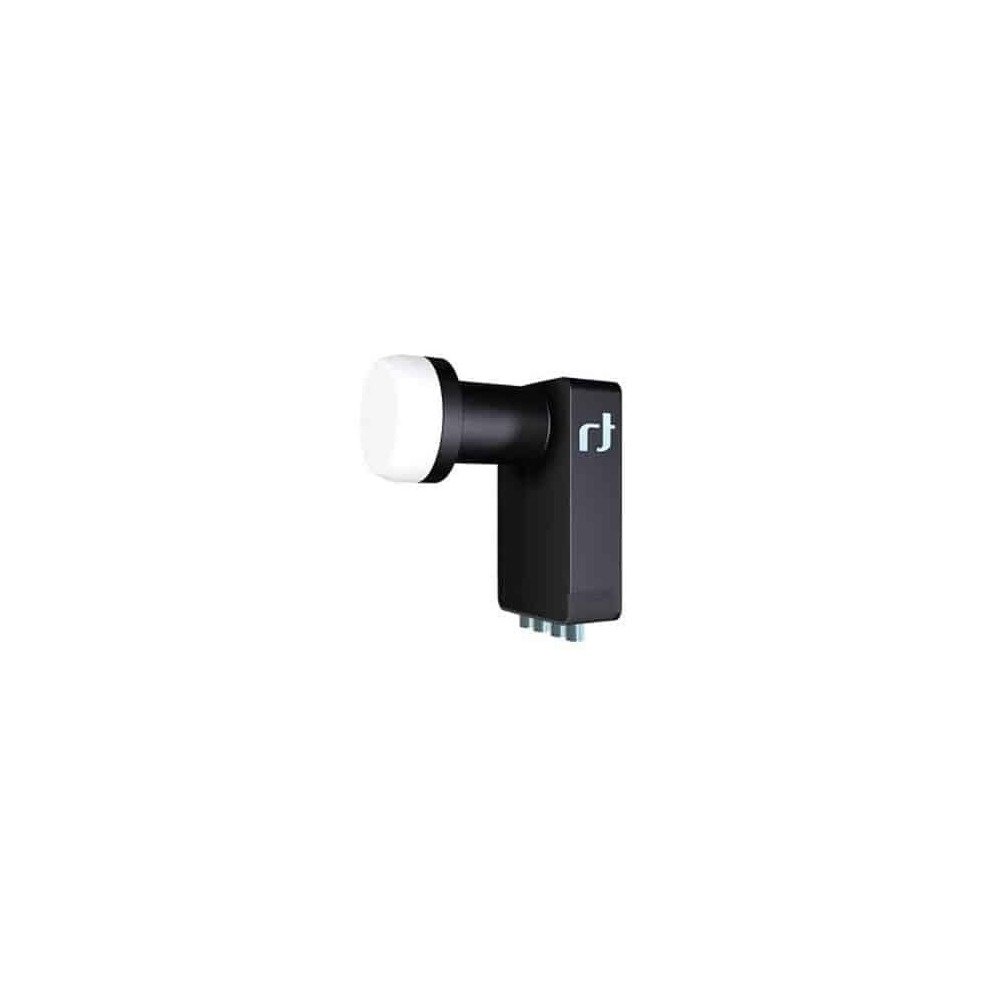

INVERTO Quad LNB Inverto Black Ultra
495,00 kr inkl. moms
- Ett mycket högkvalitativt quad lnb från världsledande Inverto.• Superior Phase Noise performance, DVB-S2 (HDTV) compliant• Excellent Cross Polarization Isolation• Very Low Spurious Levels
• Superior Noise Figure
Alltid Fri Frakt!
- 100% Nöjd Kundgaranti
- Enkla Returer
- Säkra Betalningar
INVERTO Quad LNB Inverto Black Ultra
- Ett mycket högkvalitativt quad lnb från världsledande Inverto.• Superior Phase Noise performance, DVB-S2 (HDTV) compliant• Excellent Cross Polarization Isolation• Very Low Spurious Levels
• Superior Noise Figure
• Higher Conversion Gain
• Ultimate Reliability
| Vikt | 1 kg |
|---|---|
| Färg | Svart |
Specifikationer
| Low Band Input Frequency Range | 10.7 ~ 11.7 GHz |
| Low Band Output Frequency Range | 950 ~ 1950 MHz |
| Low Band LO Frequency | 9.75 GHz |
| High Band Input Frequency Range | 11.7 ~ 12.75 GHz |
| High Band Output Frequency Range | 1100 ~ 2150 MHz |
| High Band LO Frequency | 10.6 GHz |
| Noise Figure | 0.2 dB Typ. (0.7 dB Max.) |
| LO Initial Accuracy | +/- 1.0 MHz Max. |
| LO Temperature Drift | +/- 3.0 MHz Max. |
| Phase Noise (@ 10 kHz) | – 90 dBc / Hz Max. |
| Conversion Gain | 60 dB Min. |
| Gain Ripple (Over 26 MHz Bandwidth) | +/- 0.75 dB |
| Gain Variation (Over Full Band) | +/- 4 dB Max. |
| Image Rejection | 40 dB Min. |
| 1 dB Compression Point (@ Output) | 0.0 dBm Min. |
| Cross Polarization Isolation | 22 dB Min. |
| Control Signal Ca (Vertical Polarization) | 11.0 ~ 14.0 V |
| Control Signal Cb (Horizontal Polarization) | 16.0 ~ 20.0 V |
| Control Signal Cc (Band Switching) | 22 +/- 4 kHz |
| Output VSWR | 2.0 : 1 |
| In-Band Spurious | – 60 dBm Max. |
| Current Consumption | 200 mA Max. @ 11 ~ 20 V |
| Operating Temperature | – 30 °C ~ + 60 °C |
| Output Impedance | 75 Ω |
| Output Connector | F-Type (Female) |
| Weight | 344 g |
