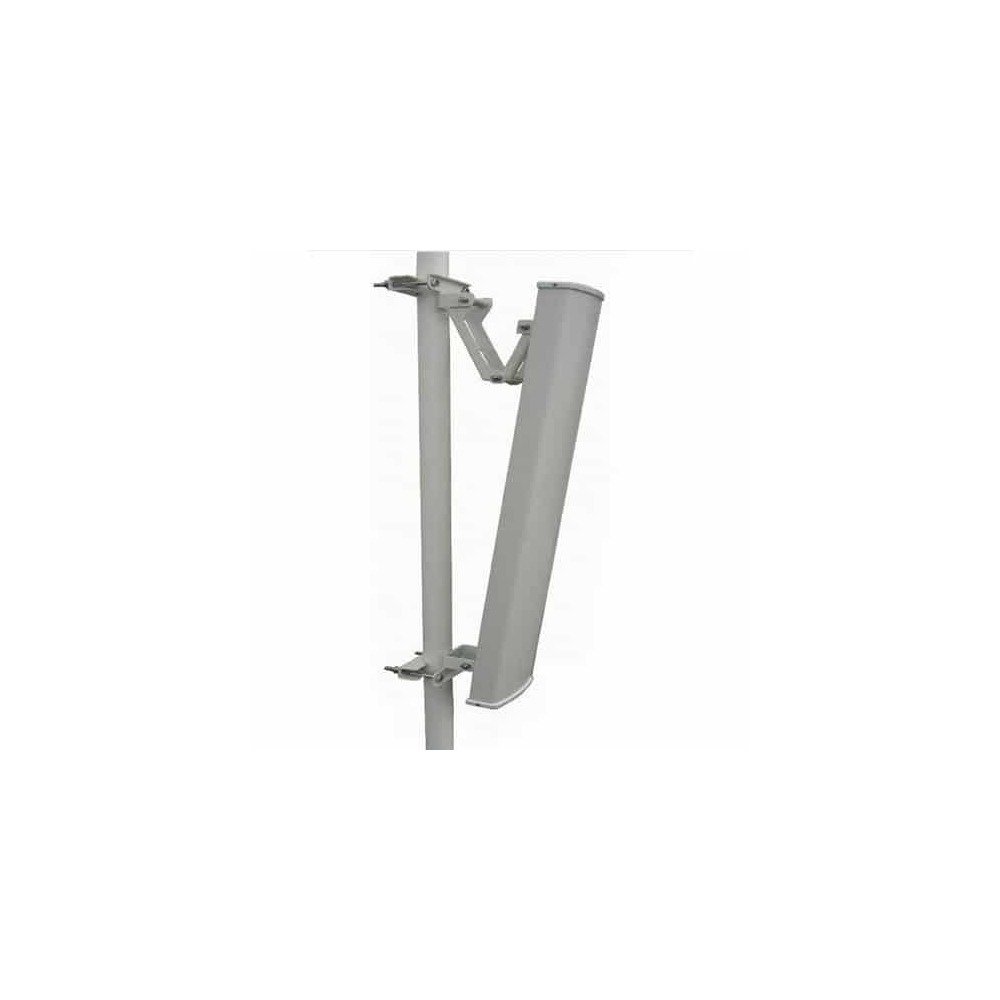

NORDSAT GSM/2G/3G/4G sektor antenn

NORDSAT GSM/2G/3G/4G sektor antenn

Frequency range (MHz): 698 – 960 / 1710 – 2700

Polarization: Vertical

Gain: (dBi): 18

Half-power beam width: Hor:65 +- 5° Ver: 15+-4°

Front-to-back ratio (dB): ≥23dB

Impedance: 50

VSWR: ≤1,5

Maximum input power: 100,

Lightning protection: DC Ground

Connector: N-Femle

Connector position: down-lead

Dimensions (mm): 1200x275x80

Antenna Weight (kg): 19

Rated Wind Veloxity (m/s): 36,9

Radome material: PVC

Mounting Hardware (mm): Φ50~ϕ50

Radome Color: Gray

Operating Temperature: -40~55°C
